Bucket Crusher DC-15
PRODUCT INFORMATION

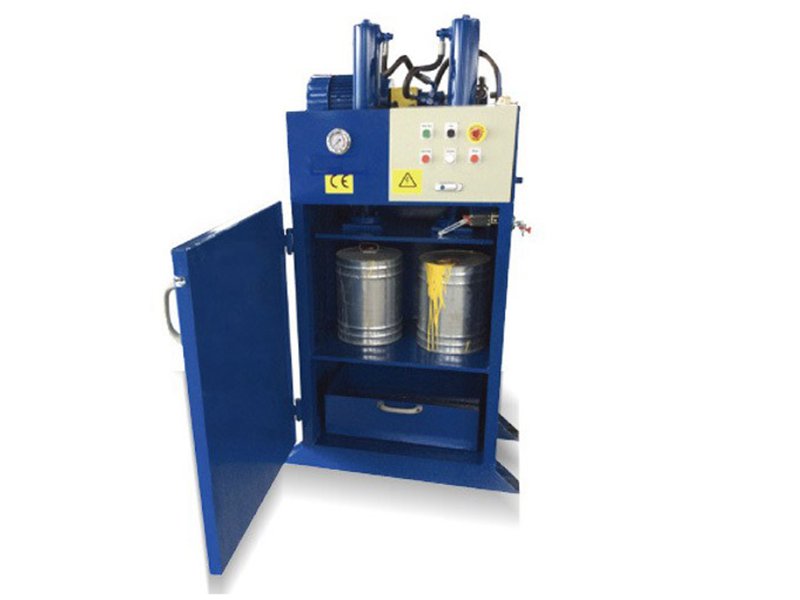

Balewell new designed Bucket Crusher for pressing painting bucket. Volume from 25-50L.Drum Height max for 430mm.The painting drum crusher comes with the waste liquid collecting container which can collect the max 100liter waste liquid. Automatic running is the best function of the machine, one button operate makes easy operating and fast operating. We also installed nails on the pressing platen which will release the pressure in the drum to prevent the risk of explosion. We sold 500 units in the past 5 years for recycling company and painting making company
2. The air and liquid will be set out automatically when compress, the inside trench is environmental protection.
3. This crusher is suitable for the compression of the oil drum, paint box and other kinds of barrels.
4. It has safety protection equipment.
| Pump | Rated Displacement:10/r |
| Motor | Rated Power :2.2 |
| Main Technical Specifications | |
| Press Chamber | 480×400×500mm |
| Cycle Time | 15seconds |
| Press Force | 15tons |
| Noise Level | 68-70db |
| Dimensions And Shipping | |
| Overall Length | 480mm |
| Overall Width | 580mm |
| Overall Height | 1580mm |
| Shipping Weight | 600kgs |
| Container Loading | 1×20”GP |
Engineering & Installation & Commission
Balewell Technologies pay big attention to every customer, listen to the needs of customers, and think what customers think. We hold technical meetings to analyze each customer’s requirement to design and produce the scrap metal bucket crusher that customers need.
Balewell’s dedicated service team is available when required to provide customers with a comprehensive support service including scrap paiting drum crusher installation, commissioning, and operator training, fault diagnosis, repairs and routine maintenance.
They teach your operators and technicians to work safely whilst ensuring that your painting bucket crusher are operated correctly.
