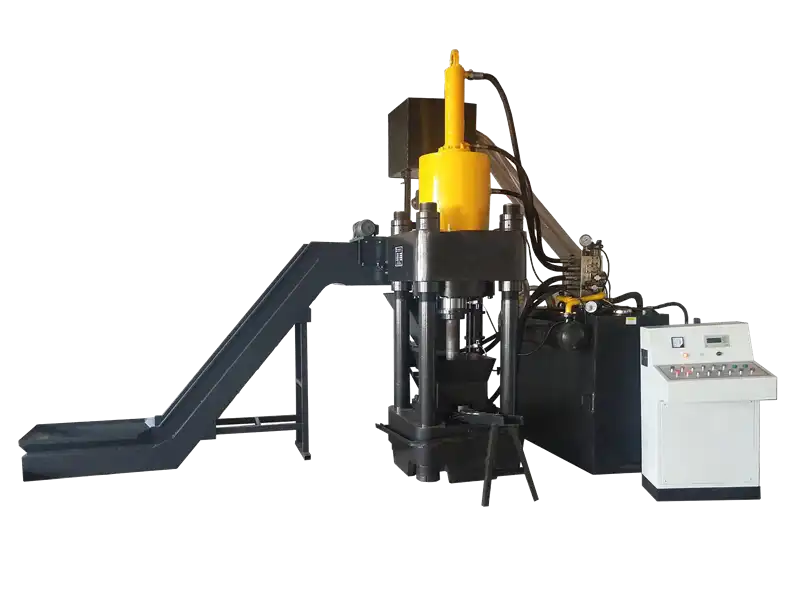

Metal Briquetting Press BPV- Vertical Type
PRODUCT INFORMATION
Balewell briquetting press is widely applied to compress metal sawdust (steel,cast iron,aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting,to make recycling & smelting easy & convenient. Cast iron sawdust, after pressed into briquets,can subsititue pig iron as raw materials.
This is the VERTICAL type BPV series Metal Briquetting Press…
| Model | Inner Diameter (mm) |
Size of Briquette (mm) |
Density (t/m3) |
Weight of Briquette (kg) |
Productivity (block/min) |
Output in One Shift (t) |
Total Power (kw) |
Weight (t) |
Dimension (mm) |
Operational |
| BPV-150A | Φ250 | Φ80×(50-70) | ≥5.0 | 2.0-2.5 | 2-2.5 | 4-5 | 15 | 3.4 | 2100×1400×2000 | Manual |
| BPV-150B | Φ250 | Φ80×(60-80) | ≥5.0 | 2.0-2.5 | 3 | 4-5 | 15 | 3.4 | 2100×1400×2000 | PLC Automatic |
| BPV-200A | Φ280 | Φ80×(60-80) | ≥5.0 | 2.5-3.0 | 5 | 4-5 | 15 | 4 | 2200×1450×2800 | Manual |
| BPV-200B | Φ280 | Φ80×(60-80) | ≥5.0 | 2.5-3.0 | 5 | 4-6 | 15 | 4 | 2200×1450×2800 | PLC Automatic |
| BPV-250A | Φ320 | Φ80-90×(60-80) | ≥5.2 | 2.5-3.0 | 6 | 5-6 | 18.5 | 5 | 2400×2100×3100 | Manual |
| BPV-250B | Φ320 | Φ80-90×(60-80) | ≥5.2 | 2.5-3.0 | 6 | 5-6 | 18.5 | 5 | 2400×2100×3100 | PLC Automatic |
| BPV-250E | Φ320 | Φ90-110×(70-100) | ≥5.2 | 2.5-3.5 | 6 | 6-7 | 18.5 | 5 | 2400×2100×3100 | PLC Automatic |
| BPV-315 | Φ360 | Φ90-110×(70-100) | ≥5.5 | 3.0-4.0 | 6 | 8-12 | 30 | 6 | 3100×2900×3200 | PLC Automatic |
| BPV-360 | Φ400 | Φ100-140×(70-100) | ≥6.0 | 3.5-5.0 | 6 | 10-12 | 30 | 6.5 | 3200×3000×3200 | PLC Automatic |
| BPV-500 | Φ450 | Φ120-150×(70-100) | ≥6.0 | 5.0-8.0 | 5 | 16-20 | 37 | 10 | 3300×3000×3600 | PLC Automatic |
| BPV-630 | Φ520 | Φ130-160×(100-120) | ≥6.0 | 6.0-12.0 | 5 | 20-30 | 45 | 15 | 3400×3100×4000 | PLC Automatic |
Cast iron powder, high grade of ductile cast iron, alloy, steel, copper and other metal filings can be cold pressed to cylindrical by BPV-Series metal briquetting press, with density of 5.5~6ton/m3 (Adhesive is not used) and production of 8~20 tons in every shift.
1) Steel chips – steel briquette

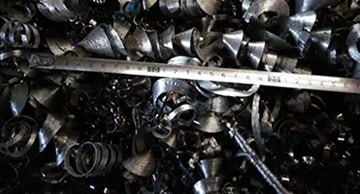

Steel Chips
Whether it’s turnings, chips, filings, shavings or sludge, the steel you use is being wasted as it gathers on your shop floor.

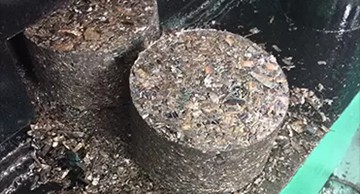

Steel Briquette
Steel briquetting press can double the value you get for your steel scrap compared to loose chips or other recycling methods.

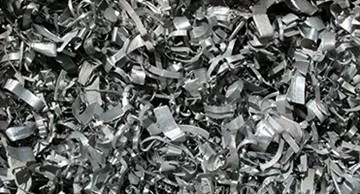

Aluminum Chips
Aluminum scrap metal, in the form of turnings, filings, chips and shavings, piling up on the equipment and floor. taking up the valuable floor space.

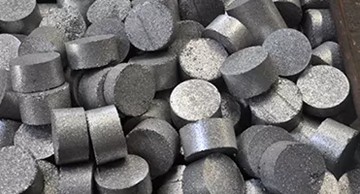

Aluminum Briquette
Compress aluminum scrap into dense briquettes and separate any fluids used in the metalworking process from the scrap metal.

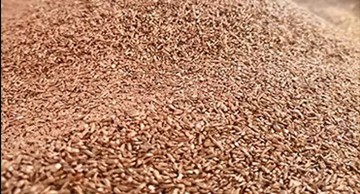

Copper Chips
What do you do with your copper scrap? If you are like many manufacturers, the scrap is stored in your yard, then hauled away (at your expense) to be disposed of.

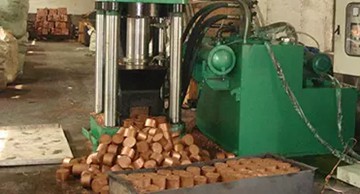

Copper Briquette
Balewell briquetting press to turn your scrap copper into compressed briquettes that are easier to handle, store and transport and can be sold for recycling..
Engineering & Installation & Commission
Balewell Technologies pay big attention to every customer, listen to the needs of customers, and think what customers think. We hold technical meetings to analyze each customer’s requirement to design and produce the scrap metal metal briquetting press that customers need.
Balewell’s dedicated service team is available when required to provide customers with a comprehensive support service including scrap metal briquetting press installation, commissioning, and operator training, fault diagnosis, repairs and routine maintenance.
They teach your operators and technicians to work safely whilst ensuring that your metal briquetting press are operated correctly.
