Alligator Shear ASI- INTEGRATED

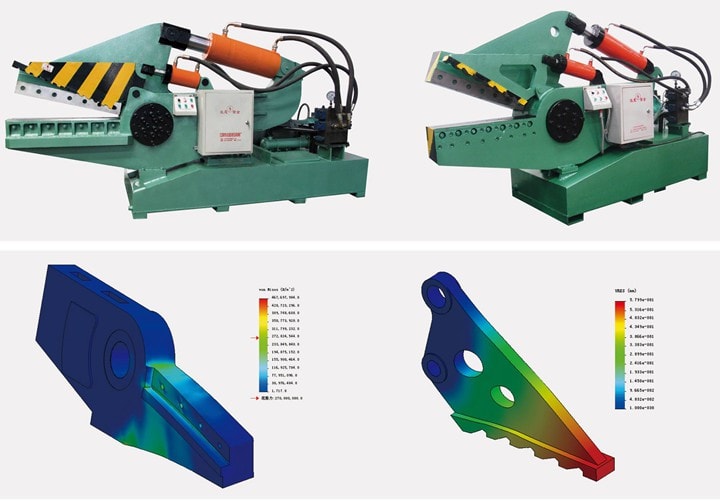

BALEWELL ASI metal crocodile shear is our integrated model released in 2008. The shear body adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate. A new integration, which avoids the disadvantage of secondary installation. Shear head adopts steel casting, more durable. This machine is equipped with fast unit, shearing speed is doubled than before, the power is saved by 50%.
Our ASI metal crocodile shear is the ideal machine when it comes to the cleaning of light and medium sized non-ferrous materials. Furthermore this shear can be used for shearing ferrous materials like reinforcing bar and mild steel round bar too.
Here is INTEGRATED type ASI series Crocodile Shears…
BALEWELL Alligator shears cut scrap metal into smaller pieces and help to separate different material types, earning you more money from your scrap metals. This shearing machine is used in waste materials recycling processing industries, scrap metal (iron, steel, steel pipe, etc.) cold shearing to different section forms of middle and small steel factories.
Features:
1. A longer life, shear head adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate.
2. Simple operation, a new integration design, convenient movement, hydraulic control handle, easy to operate, can realize automatic and semi-automatic operation, convenient and reliable.
3. Low failure rate: this machine adopts hydraulic control system, without the traditional electromagnetic value and other electrical components, low failure rate, low maintenance cost.
4. Options for different force and blade length; no footing bolts needed, diesel engine optional for power.
| Model | Shearing Force (kn) |
Press Force (kn) |
Shearing Speed (times/min) |
Max.blade Opening (mm) |
Blade Length (mm) |
Total Power (kw) |
Weight of Machine (kg) |
Overall Dimension (mm) |
| ASI-63 | 630 | 105 | 14-25 | 320 | 600 | 7.5 | 1800 | 2100×800×1550 |
| ASI -100 | 1000 | 105 | 14-25 | 320 | 600 | 7.5 | 2200 | 2100×800×1550 |
| ASI -125 | 1250 | 105 | 12-25 | 320 | 600 | 11 | 3200 | 2300×1000×1650 |
| ASI-160A | 1600 | 165 | 11-25 | 340 | 600 | 15 | 3800 | 2600×1000×1800 |
| ASI-160B | 1600 | 165 | 11-25 | 380 | 700 | 15 | 4000 | 2700×1000×1800 |
| ASI -200 | 1909 | 196 | 10-20 | 420 | 800 | 18.5 | 4800 | 2660×930×1680 |
Cutting Standard σb≤400MPa
Engineering & Installation & Commission
Balewell Technologies pay big attention to every customer, listen to the needs of customers, and think what customers think. We hold technical meetings to analyze each customer’s requirement to design and produce the scrap metal crocodile shears that customers need.
Balewell’s dedicated service team is available when required to provide customers with a comprehensive support service including scrap metal crocodile shear machine installation, commissioning, and operator training, fault diagnosis, repairs and routine maintenance.
They teach your operators and technicians to work safely whilst ensuring that your metal crocodile shears are operated correctly.
